Katja v1.0.0 Documentation

Multi-Mode AI Chat Platform with Specialized LLMs

What is Katja?

Katja is a comprehensive AI chat platform featuring 5 specialized modes designed for different use cases. Built with a local-first philosophy, it uses Ollama for privacy-preserving AI inference, ensuring all data remains on your machine unless you opt for cloud fallback.

Why Katja?

• Privacy-First: Local inference via Ollama means your conversations never leave your machine
• Specialized Models: Purpose-built LLMs for legal reasoning, medical queries, and language learning
• Multi-Modal: 5 distinct chat modes optimized for different tasks
• Offline-Capable: Works without internet after initial model download
• Open Source: Fully transparent codebase with no telemetry
• Flexible: Choose between local privacy or cloud performance

Core Capabilities

Features Overview

5 Specialized Chat Modes

Supported Languages

Language Learning mode supports 7 European languages:

• 🇸🇮 Slovene
• 🇩🇪 German
• 🇮🇹 Italian
• 🇭🇷 Croatian
• 🇫🇷 French
• 🇬🇧 English
• 🇵🇹 Portuguese

Privacy & Security

• Local-First Inference: All LLM processing via Ollama by default
• No Cloud Required: Works offline after model download
• No Telemetry: Zero data collection or tracking
• Session Isolation: Each browser tab gets unique session ID
• CORS Security: Configurable allowed origins
• Optional Cloud: Explicit opt-in for OpenAI fallback

Installation & Setup

Prerequisites

1. Ollama: Install from ollama.ai
2. Node.js 18+: For frontend
3. Python 3.10+: For backend
4. Git: To clone repository
5. OpenAI API Key (Optional): For cloud fallback

Pull Recommended Models

# General-purpose chat
ollama pull llama3:8b-instruct-q4_K_M

# English law (Saul 7B)
ollama pull adrienbrault/saul-instruct-v1:Q4_K_M

# Medical (Meditron)
ollama pull meditron-7b

# Biomedical (BioMistral)
ollama pull biomistral-7b

# Multi-lingual options
ollama pull qwen2:7b
ollama pull glm4

Quick Start (Linux)

git clone https://github.com/SL-Mar/Katja.git
cd Katja
chmod +x launch-katja.sh
./launch-katja.sh

This launches all services:

• Language Learning: http://localhost:3000
• General Chat: http://localhost:3000/chat
• Legal Chat: http://localhost:3000/legal-chat
• Medical Chat: http://localhost:3000/medical-chat
• Console: http://localhost:3000/console
• Settings: http://localhost:3000/settings
• API Docs: http://localhost:8000/docs

Manual Setup

Backend Setup

cd backend
python3 -m venv venv
source venv/bin/activate  # On Windows: venv\Scripts\activate
pip install -r requirements.txt

# Configure environment
cp .env.example .env
# Edit .env with your settings

# Start backend
uvicorn main:app --reload --host 0.0.0.0 --port 8000

Frontend Setup

cd frontend
npm install
npm run dev

Environment Configuration

Edit backend/.env file:

# LLM Provider (local = Ollama, openai = fallback)
LLM_PROVIDER=local

# Ollama settings
OLLAMA_MODEL=llama3:8b-instruct-q4_K_M
OLLAMA_BASE_URL=http://localhost:11434

# Optional: OpenAI fallback
# OPENAI_API_KEY=your_api_key_here

# CORS origins (comma-separated)
ALLOWED_ORIGINS=http://localhost:3000,http://localhost:3001,http://localhost:5173

System Architecture

High-Level Overview

┌─────────────┐      ┌──────────────┐      ┌─────────────┐
│  Next.js    │─────▶│  FastAPI     │─────▶│   Ollama    │
│  Frontend   │◀─────│  Backend     │◀─────│   (Local)   │
│ (Port 3000) │      │ (Port 8000)  │      │ (Port 11434)│
└─────────────┘      └──────────────┘      └─────────────┘
                            │
                            ▼
                     ┌──────────────┐
                     │   SQLite     │
                     │   Database   │
                     └──────────────┘

LLM Inference Flow

1. User Message: Frontend sends message to /katja/chat
2. Backend Receives: Loads conversation history from SQLite
3. Prompt Construction: Builds system prompt + context
4. Ollama Inference: Sends to local Ollama instance
5. JSON Parsing: Extracts structured response (reply + grammar correction)
6. Database Storage: Saves conversation to SQLite
7. Response: Returns to frontend

JSON Response Format

Enforced via Ollama's format: json parameter:

{
  "reply": "Conversational response in target language",
  "correction": {
    "corrected": "Corrected version of user's text",
    "explanation": "Grammar explanation",
    "pattern": "Grammar pattern ID (if applicable)",
    "severity": "minor|major|critical"
  }
}

Architecture Components

Frontend Layer (Next.js)

• React 18: Component-based UI
• TypeScript: Type-safe development
• Tailwind CSS: Utility-first styling
• react-markdown + KaTeX: LaTeX rendering
• FontAwesome: Icon library

Backend Layer (FastAPI)

• FastAPI: Async Python web framework
• Pydantic v2: Data validation
• SQLite + WAL: Database with Write-Ahead Logging
• SlowAPI: Rate limiting

LLM Layer (Ollama)

• Local Inference: Privacy-preserving AI
• 14+ Models: Llama3, Qwen2, GLM4, Gemma2, etc.
• Specialized Models: Saul-7B (legal), Meditron (medical), BioMistral (biomedical)
• Cloud Fallback: Optional OpenAI GPT-4o-mini

Data Layer

• SQLite Database: Persistent storage
• WAL Mode: Write-Ahead Logging for concurrency
• Session Isolation: Unique session IDs per browser tab
• Auto-Initialization: Tables created on first run

Technology Stack

Frontend Technologies

Backend Technologies

LLM Models

Configuration Parameters

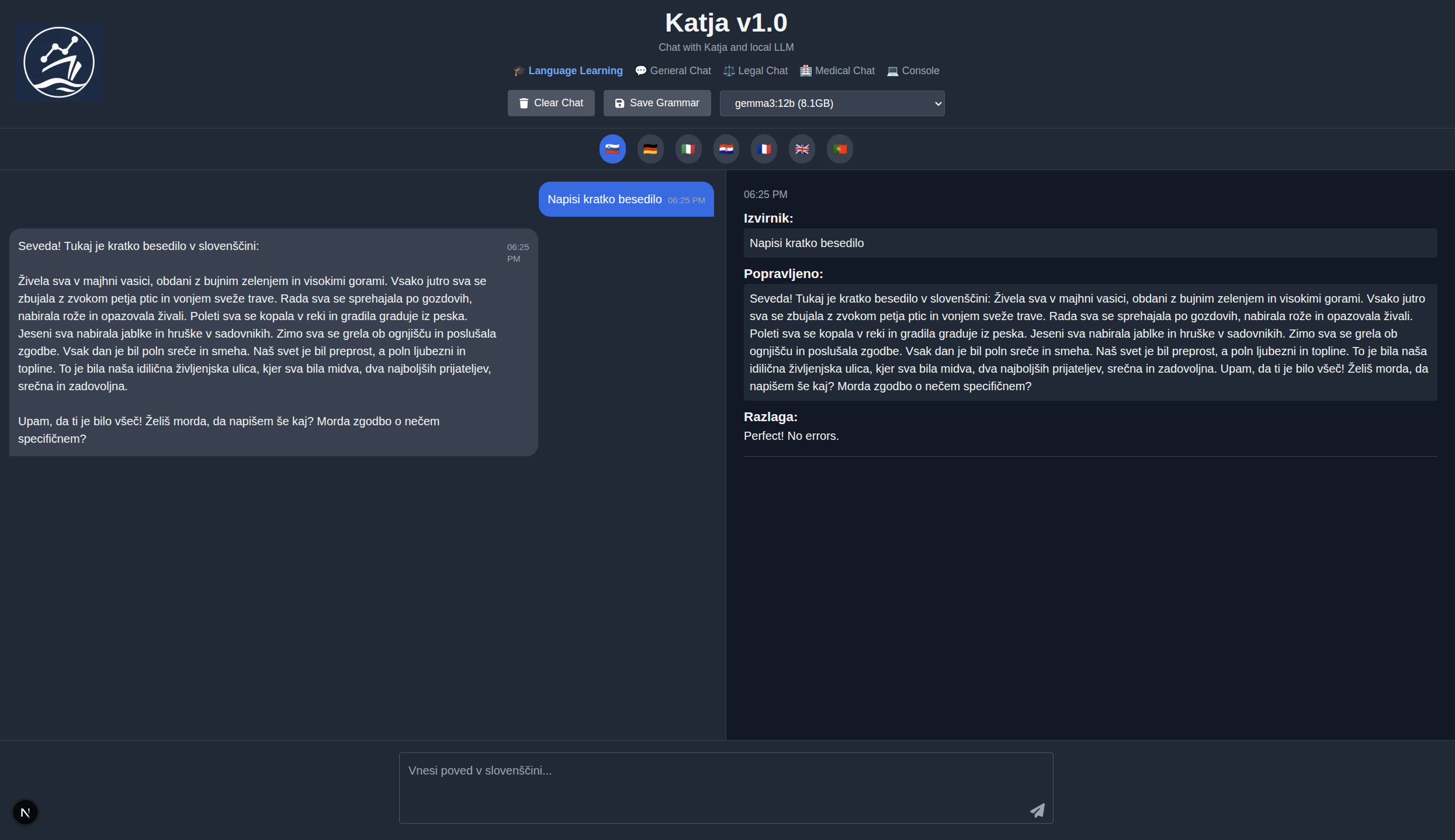

Language Learning Mode

Overview

Language Learning mode provides real-time grammar correction and conversational practice in 7 European languages. Designed as an immersive learning tool with instant feedback.

Key Features

• 7 Languages: Slovene, German, Italian, Croatian, French, English, Portuguese
• Real-Time Grammar Correction: Instant feedback with explanations in target language
• Spaced Repetition: SM-2 algorithm for reviewing grammar patterns
• Export Corrections: Save corrections as JSON for external tools
• Auto-Clear on Switch: Fresh conversation when changing languages
• Severity Levels: Minor, Major, Critical grammar issues

How It Works

1. Select target language via flag buttons
2. Type message in target language
3. Receive conversational response
4. Get grammar correction with explanation (if applicable)
5. Review corrections using spaced repetition

Grammar Correction Format

{
  "corrected": "Corrected version of text",
  "explanation": "Why the correction was needed",
  "pattern": "grammar_pattern_123",
  "severity": "major"
}

Spaced Repetition (SM-2 Algorithm)

Grammar corrections are automatically added to a spaced repetition queue using the SuperMemo-2 algorithm:

• Initial Interval: 1 day
• Easy Factor: 2.5 (adjusts based on performance)
• Review Outcomes: Easy, Good, Hard, Again
• Adaptive Scheduling: Intervals increase with successful reviews

Supported Languages Details

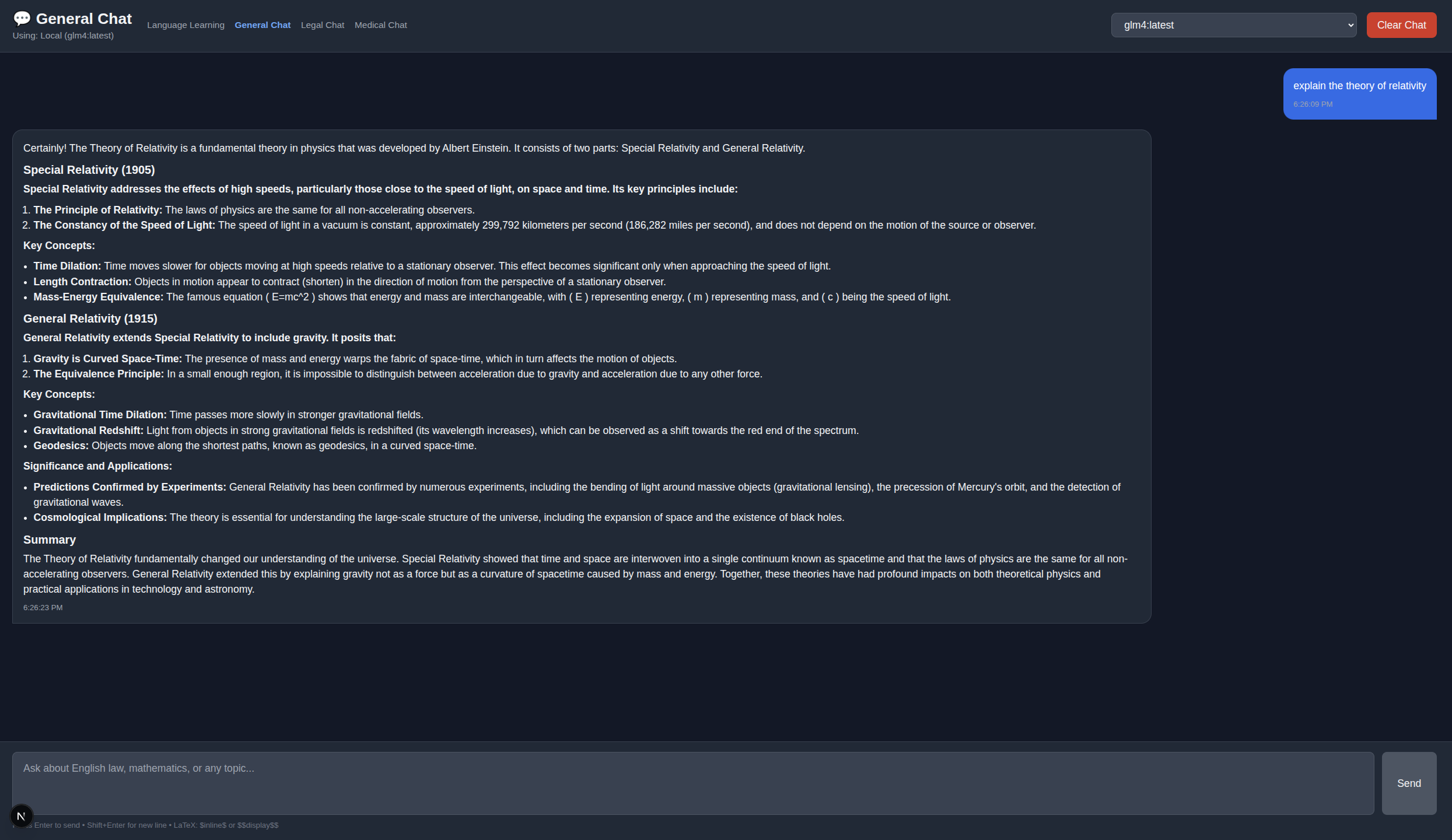

General Chat Mode

Overview

General Chat mode provides flexible AI conversations with 14+ LLM models and support for technical discussions, including LaTeX math rendering.

Key Features

• 14+ Models: Choose from Llama, Qwen, GLM4, Gemma, and more
• LaTeX Rendering: Inline $...$ or display $$...$$ math formulas
• Model Switching: Live dropdown selector
• Structured Responses: Optimized system prompts for technical queries
• GPT-4o-mini Support: Optional OpenAI cloud fallback
• Session Memory: Conversation context maintained

LaTeX Math Support

Rendered using KaTeX for beautiful mathematical typesetting:

Inline Math

The quadratic formula is $x = \frac{-b \pm \sqrt{b^2 - 4ac}}{2a}$

Display Math

$$
\int_0^\infty e^{-x^2} dx = \frac{\sqrt{\pi}}{2}
$$

Example Queries

• "What is Bayes' theorem and how is it used in statistics?"
• "Explain quantum entanglement in simple terms"
• "Write a Python function to calculate Fibonacci numbers"
• "Derive the Navier-Stokes equations"

Available Models

All Ollama models installed on your system are automatically detected and available in the dropdown:

• llama3:8b-instruct-q4_K_M
• qwen2:7b
• glm4
• gemma2:9b
• mistral:7b
• And any other models you pull

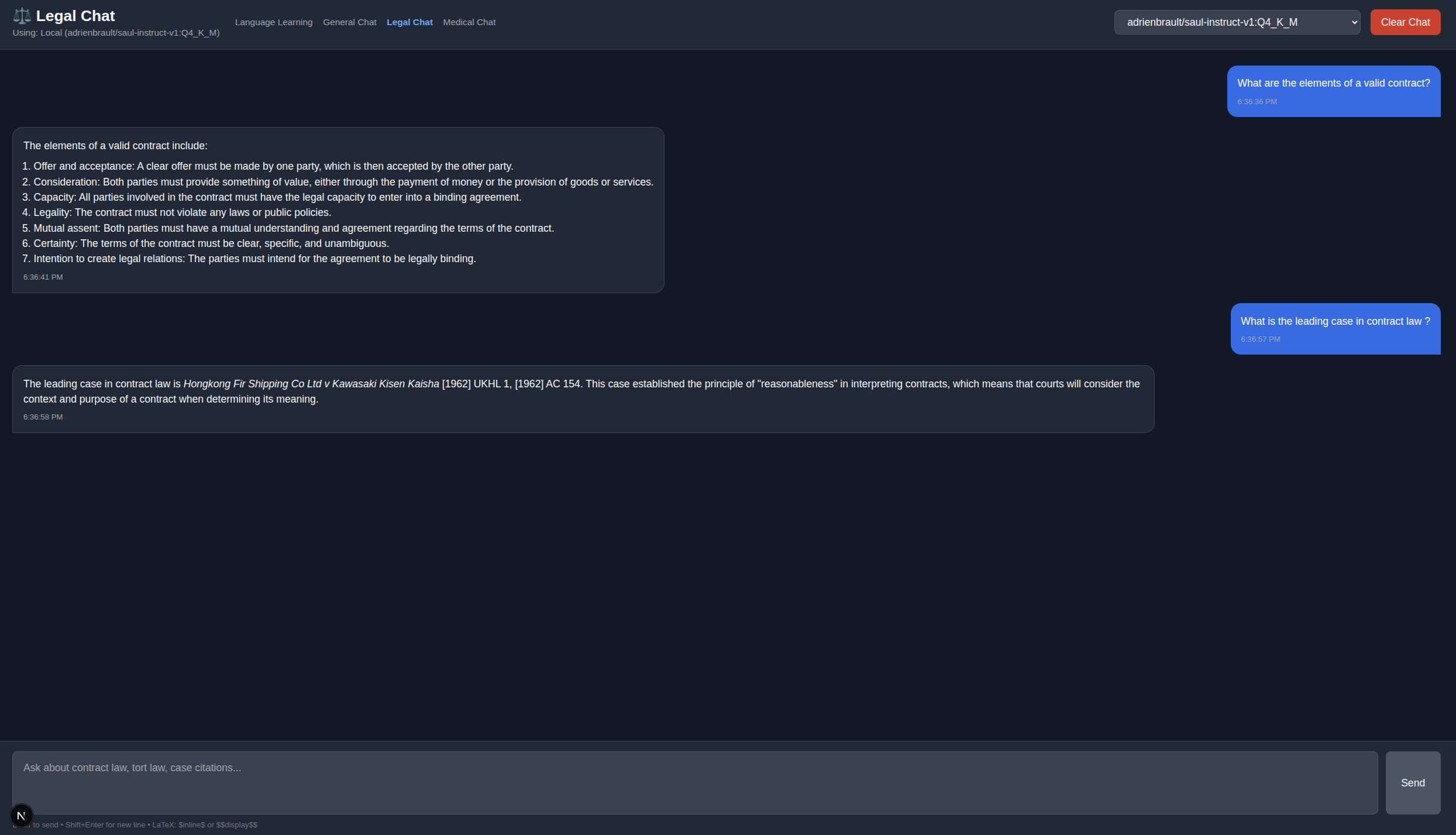

Legal Chat Mode

Overview

Legal Chat mode uses the specialized Saul-7B model fine-tuned for English law, contracts, torts, and legal reasoning.

Key Features

• Saul-7B Model: Fine-tuned for English common law
• Legal Citations: Properly formatted case references
• Precedent Explanations: Detailed case law analysis
• Legal Doctrine: Equity, trusts, negligence, contract law
• LaTeX Support: Formatted legal citations and principles

Legal Domains Covered

• Contract Law: Formation, consideration, breach, remedies
• Tort Law: Negligence, duty of care, causation
• Equity: Trusts, equitable remedies, fiduciary duties
• Insurance Law: Good faith, utmost good faith doctrine
• Case Law: Precedent analysis and legal reasoning

Example Queries

• "What is the leading case in negligence?" → Donoghue v Stevenson [1932]
• "Explain the doctrine of consideration in contract law"
• "Is there an obligation of good faith in insurance law?"
• "What are the elements of a valid trust?"

Saul-7B Model Details

Maritime Medical Chat Mode

Overview

Maritime Medical Chat mode is designed for ship's officers managing medical care on vessels without doctors, using Meditron and BioMistral models.

Key Features

• Meditron & BioMistral: Medical-domain fine-tuned models
• Maritime Focus: Ship's officer medical care guidance
• Examination Protocols: Systematic patient assessment
• Telemedicine Prep: Organize observations for physician consultations
• IMGS Protocol: International Medical Guide for Ships compliance
• No Diagnosis/Treatment: Emphasizes observation and communication

Examination Guidance

The system guides ship's officers through systematic patient examination:

1. Vital Signs

• Blood pressure
• Heart rate
• Respiratory rate
• Temperature
• Oxygen saturation (if available)

2. SAMPLE History

• Signs and symptoms
• Allergies
• Medications
• Past medical history
• Last oral intake
• Events leading to illness/injury

3. Physical Examination

• General appearance
• Head-to-toe examination
• Neurological status
• Specific area of concern

Example Queries

• "How should I perform a complete physical examination on a crew member with chest pain?"
• "What vital signs should I collect for the ship's doctor consultation?"
• "Guide me through assessing a patient's neurological status"
• "What observations should I document for a suspected appendicitis case?"

IMGS Compliance

Follows protocols from the International Medical Guide for Ships (WHO publication):

• Standardized examination procedures
• Telemedicine consultation preparation
• Medical record documentation
• Shore-based physician communication

Model Details

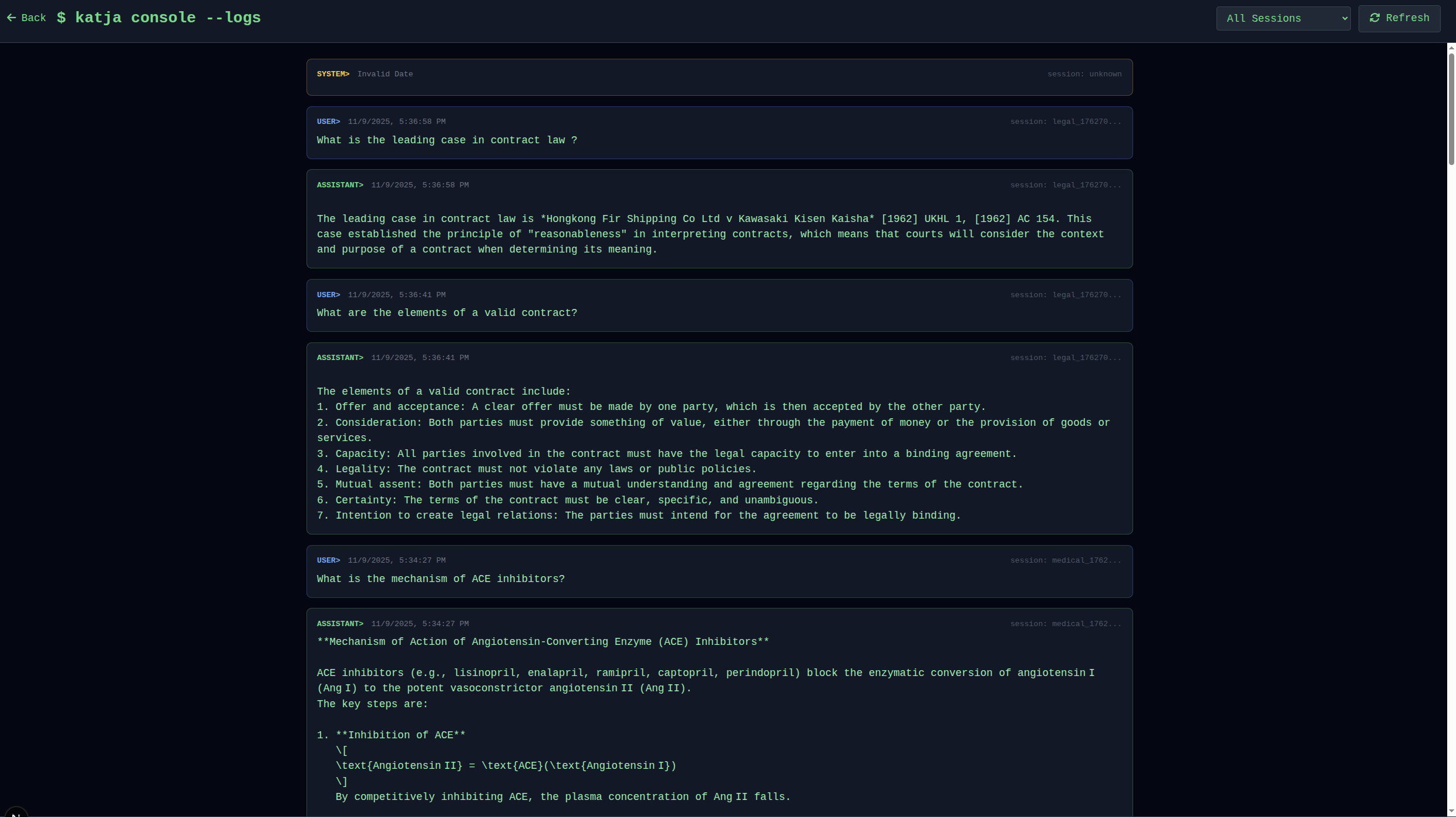

Console Mode

Overview

Console mode provides a terminal-style monitoring interface for all LLM interactions across all chat modes.

Key Features

• Terminal Aesthetic: Hacker-style green monospace text
• Multi-Session Monitoring: View all conversations in one place
• Real-Time Updates: Auto-refresh every 3 seconds
• Session Filtering: Filter by language, general, legal, medical
• Model Tracking: See which model was used for each response
• Timestamp Tracking: Full conversation history with precise timestamps

Console Display Format

[2025-11-10 17:30:15] [language] [llama3:8b-instruct-q4_K_M]
USER: Zdravo, kako si?
ASSISTANT: Jaz sem dobro, hvala! Kako si ti?
CORRECTION: None

[2025-11-10 17:31:22] [general] [qwen2:7b]
USER: Explain quantum entanglement
ASSISTANT: Quantum entanglement is a phenomenon where...

[2025-11-10 17:32:45] [legal] [saul-instruct-v1]
USER: What is the leading case in negligence?
ASSISTANT: The leading case is Donoghue v Stevenson [1932] AC 562...

Filtering Options

• All: Show all conversations
• Language Learning: Only language practice sessions
• General Chat: General-purpose conversations
• Legal Chat: Legal queries
• Medical Chat: Medical consultations

Use Cases

• Debugging: Track which models are being used
• Analysis: Review conversation patterns
• Export: Copy logs for external analysis
• Monitoring: Watch real-time LLM responses

LLM Routing

Overview

Katja's LLM routing system intelligently selects between local Ollama models and cloud OpenAI fallback based on availability and configuration.

Routing Logic

1. Check LLM_PROVIDER in .env
   ├─ "local" → Use Ollama
   └─ "openai" → Use OpenAI API

2. If Ollama selected:
   ├─ Check if Ollama is running (http://localhost:11434)
   ├─ If available → Use selected Ollama model
   └─ If unavailable AND OPENAI_API_KEY set → Fallback to GPT-4o-mini

3. If OpenAI selected:
   └─ Use GPT-4o-mini directly

Model Selection Priority

1. User Selection: Model selected in UI dropdown (highest priority)
2. Environment Variable: OLLAMA_MODEL in .env
3. Default Model: llama3:8b-instruct-q4_K_M
4. Cloud Fallback: gpt-4o-mini (if configured)

Automatic Fallback

If local Ollama is unavailable and OpenAI API key is configured:

try:
    response = ollama_client.chat(model=selected_model, ...)
except Exception as e:
    if OPENAI_API_KEY:
        logger.warning("Ollama unavailable, falling back to GPT-4o-mini")
        response = openai_client.chat(model="gpt-4o-mini", ...)
    else:
        raise Exception("Ollama unavailable and no OpenAI fallback configured")

Model Discovery

Available models are automatically discovered from Ollama:

GET http://localhost:11434/api/tags

Response:
{
  "models": [
    {"name": "llama3:8b-instruct-q4_K_M"},
    {"name": "qwen2:7b"},
    {"name": "saul-instruct-v1:Q4_K_M"},
    ...
  ]
}

Grammar Correction System

Overview

The grammar correction system analyzes user input in the target language and provides detailed feedback with explanations.

Correction Process

1. Input Analysis: User message parsed by LLM
2. Error Detection: Grammar, syntax, spelling issues identified
3. Severity Assignment: Minor, Major, or Critical
4. Correction Generation: Corrected version created
5. Explanation: Why the correction was needed (in target language)
6. Pattern Matching: Link to grammar pattern database (if applicable)

Severity Levels

Grammar Pattern Database

Pre-seeded with common grammar patterns for each language:

# German example
{
  "pattern_id": "de_case_accusative",
  "language": "german",
  "category": "cases",
  "rule": "Accusative case after verbs of motion with direction",
  "example": "Ich gehe in den Park (not in der Park)",
  "difficulty": "intermediate"
}

Correction JSON Schema

{
  "corrected": "Corrected version of the text",
  "explanation": "Detailed explanation in target language",
  "pattern": "grammar_pattern_id or null",
  "severity": "minor | major | critical"
}

Spaced Repetition System

Overview

Katja implements the SuperMemo-2 (SM-2) algorithm for optimally scheduling grammar correction reviews.

SM-2 Algorithm

The algorithm adjusts review intervals based on your performance:

Parameters

• EF (Easiness Factor): Starts at 2.5
• Interval: Days until next review
• Repetitions: Number of successful reviews

Review Outcomes

Interval Calculation

if quality < 3:
    # Failed - reset
    interval = 1
    repetitions = 0
else:
    if repetitions == 0:
        interval = 1
    elif repetitions == 1:
        interval = 6
    else:
        interval = previous_interval * EF

    # Update EF
    EF = EF + (0.1 - (5 - quality) * (0.08 + (5 - quality) * 0.02))
    if EF < 1.3:
        EF = 1.3

    repetitions += 1

Review Workflow

1. Navigate to Reviews page (/reviews)
2. View corrections due for review
3. For each correction:
   • See original text
   • Recall correct version
   • Rate difficulty: Again, Hard, Good, Easy
4. Next review scheduled automatically

Session Management

Overview

Katja uses unique session IDs to isolate conversations across different browser tabs and chat modes.

Session ID Generation

// Frontend (localStorage)
const sessionId = localStorage.getItem('sessionId') || generateUUID();
localStorage.setItem('sessionId', sessionId);

Session Isolation

• Per Browser Tab: Each tab gets unique session ID
• Persistent: Survives page refreshes
• Mode-Specific: Language learning vs general chat have separate histories
• Database Storage: All sessions stored in SQLite

Conversation Context

Each API call includes session history for context-aware responses:

POST /katja/chat
{
  "session_id": "550e8400-e29b-41d4-a716-446655440000",
  "language": "german",
  "text": "Wie geht es dir?"
}

Backend loads history:
SELECT * FROM conversation_history
WHERE session_id = ?
ORDER BY timestamp DESC
LIMIT 10

Clearing Sessions

Each mode has a clear button to reset conversation:

DELETE /katja/clear?session_id={sessionId}

# Deletes all conversation history for this session

API Reference Overview

Base URL

http://localhost:8000

Authentication

No authentication required for local development. CORS origins configured in .env file.

Response Format

All responses are JSON:

{
  "reply": "Assistant response",
  "correction": {
    "corrected": "Corrected text",
    "explanation": "Explanation",
    "pattern": "pattern_id",
    "severity": "major"
  }
}

Error Handling

{
  "detail": "Error message",
  "type": "error_type"
}

Common HTTP Status Codes

Rate Limiting

Implemented via SlowAPI:

• Default: 60 requests per minute per IP
• Configurable: Adjust in backend code

Chat API

# Request
{
  "session_id": "550e8400-e29b-41d4-a716-446655440000",
  "language": "german",
  "text": "Ich gehe in der Park"
}

# Response
{
  "reply": "In den Park! Du meinst 'Ich gehe in den Park'.",
  "correction": {
    "corrected": "Ich gehe in den Park",
    "explanation": "Nach 'in' mit Bewegungsrichtung steht der Akkusativ",
    "pattern": "de_case_accusative",
    "severity": "major"
  }
}

# Request
{
  "session_id": "550e8400-e29b-41d4-a716-446655440000",
  "text": "What is the quadratic formula?",
  "model": "llama3:8b-instruct-q4_K_M"
}

# Response
{
  "reply": "The quadratic formula is $x = \\frac{-b \\pm \\sqrt{b^2 - 4ac}}{2a}$"
}

DELETE /katja/clear?session_id=550e8400-e29b-41d4-a716-446655440000

Response: { "status": "cleared" }

DELETE /katja/generic-chat/clear?session_id=550e8400-e29b-41d4-a716-446655440000

Response: { "status": "cleared" }

Models API

# Response
{
  "models": [
    "llama3:8b-instruct-q4_K_M",
    "qwen2:7b",
    "glm4",
    "saul-instruct-v1:Q4_K_M",
    "meditron-7b",
    "biomistral-7b"
  ]
}

# Response
{
  "models": [
    {
      "name": "llama3:8b-instruct-q4_K_M",
      "size": "4.9GB",
      "modified": "2025-10-15T10:30:00Z"
    }
  ]
}

# Request
{
  "model": "qwen2:7b"
}

# Response
{
  "status": "model_selected",
  "model": "qwen2:7b"
}

Console API

# Query Parameters
?type=language  # language | general | all
?limit=100

# Response
{
  "history": [
    {
      "timestamp": "2025-11-10T17:30:15Z",
      "type": "language",
      "model": "llama3:8b-instruct-q4_K_M",
      "user_message": "Zdravo",
      "assistant_reply": "Živjo! Kako si?",
      "correction": null
    }
  ]
}

GET /katja/system/logs

# Streaming response (Server-Sent Events)
data: [2025-11-10 17:30:15] INFO: Chat request received
data: [2025-11-10 17:30:16] INFO: Using model llama3:8b-instruct-q4_K_M
data: [2025-11-10 17:30:18] INFO: Response generated successfully

Database Schema

Overview

Katja uses SQLite with WAL (Write-Ahead Logging) mode for better concurrency. Database auto-initializes on first startup.

Tables

user_profile

CREATE TABLE user_profile (
  id INTEGER PRIMARY KEY AUTOINCREMENT,
  session_id TEXT UNIQUE NOT NULL,
  current_language TEXT DEFAULT 'english',
  created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
  total_corrections INTEGER DEFAULT 0,
  total_conversations INTEGER DEFAULT 0
);

conversation_history

CREATE TABLE conversation_history (
  id INTEGER PRIMARY KEY AUTOINCREMENT,
  session_id TEXT NOT NULL,
  language TEXT NOT NULL,
  user_message TEXT NOT NULL,
  assistant_reply TEXT NOT NULL,
  original_text TEXT,
  corrected_text TEXT,
  timestamp TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
  FOREIGN KEY (session_id) REFERENCES user_profile(session_id)
);

grammar_corrections

CREATE TABLE grammar_corrections (
  id INTEGER PRIMARY KEY AUTOINCREMENT,
  session_id TEXT NOT NULL,
  language TEXT NOT NULL,
  original TEXT NOT NULL,
  corrected TEXT NOT NULL,
  explanation TEXT,
  pattern_id TEXT,
  severity TEXT,
  next_review_date DATE,
  easiness_factor REAL DEFAULT 2.5,
  interval INTEGER DEFAULT 0,
  repetitions INTEGER DEFAULT 0,
  created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
  FOREIGN KEY (session_id) REFERENCES user_profile(session_id),
  FOREIGN KEY (pattern_id) REFERENCES grammar_patterns(pattern_id)
);

grammar_patterns

CREATE TABLE grammar_patterns (
  pattern_id TEXT PRIMARY KEY,
  language TEXT NOT NULL,
  category TEXT,
  rule TEXT NOT NULL,
  example TEXT,
  difficulty TEXT,
  created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

generic_conversations

CREATE TABLE generic_conversations (
  id INTEGER PRIMARY KEY AUTOINCREMENT,
  session_id TEXT NOT NULL,
  role TEXT NOT NULL,  -- 'user' or 'assistant'
  content TEXT NOT NULL,
  model_used TEXT,
  timestamp TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

Indexes

CREATE INDEX idx_corrections_session ON grammar_corrections(session_id);
CREATE INDEX idx_corrections_review ON grammar_corrections(next_review_date);
CREATE INDEX idx_conversations_session ON conversation_history(session_id);
CREATE INDEX idx_generic_session ON generic_conversations(session_id);

WAL Mode

Enabled for better concurrency (multiple reads during writes):

PRAGMA journal_mode = WAL;

Model Selection Guide

Recommended Models by Use Case

Language Learning

General Chat

Legal Chat

Medical Chat

Model Installation

# Pull specific model
ollama pull llama3:8b-instruct-q4_K_M

# List installed models
ollama list

# Remove model
ollama rm model-name

Model Performance

Approximate inference speed on typical hardware (16GB RAM, CPU only):

• 4GB models: ~20-30 tokens/sec
• 7GB models: ~15-25 tokens/sec
• 9GB models: ~10-20 tokens/sec

Customization & Configuration

System Prompt Customization

Navigate to Settings page (/settings) to customize system prompts for each mode:

Features

• Live Editor: Monaco-style textarea for editing
• Browser Storage: Changes saved to localStorage
• Reset to Defaults: Restore original prompts
• Preview: See formatted prompt before saving
• Instant Effect: Changes apply on next message

Customization Tips

• Adjust tone (formal/casual)
• Add domain-specific knowledge
• Change output format preferences
• Include LaTeX notation guidance

Environment Variables

Configurable in backend/.env:

# LLM Provider
LLM_PROVIDER=local  # local | openai

# Ollama Configuration
OLLAMA_MODEL=llama3:8b-instruct-q4_K_M
OLLAMA_BASE_URL=http://localhost:11434
OLLAMA_TIMEOUT=300  # seconds

# OpenAI Fallback (optional)
OPENAI_API_KEY=sk-...
OPENAI_MODEL=gpt-4o-mini

# CORS
ALLOWED_ORIGINS=http://localhost:3000,http://localhost:3001

# Database
DATABASE_PATH=./data/katja.db

# Logging
LOG_LEVEL=INFO  # DEBUG | INFO | WARNING | ERROR

Frontend Configuration

Edit frontend/config/systemPrompts.ts for default prompts:

export const DEFAULT_PROMPTS = {
  languageLearning: "You are a friendly language teacher...",
  general: "You are a helpful AI assistant...",
  legal: "You are a legal expert specializing in English common law...",
  medical: "You are a maritime medical advisor..."
};

Port Configuration

# Frontend (package.json)
"scripts": {
  "dev": "next dev -p 3000"
}

# Backend (uvicorn command)
uvicorn main:app --host 0.0.0.0 --port 8000 --reload
